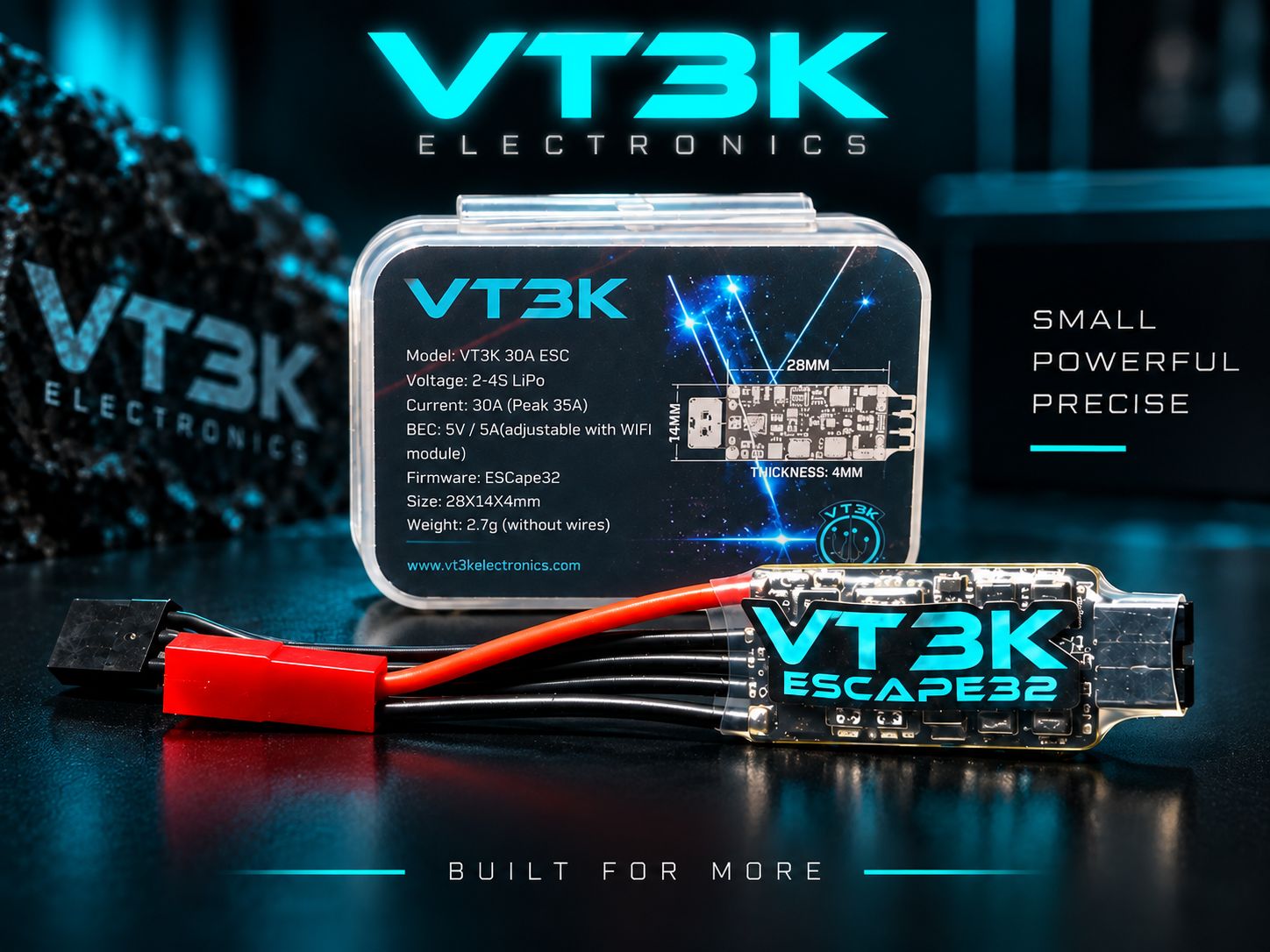

VT3K ESCape32 M30

VT3K ESCape32 M30

Micro Size. 30A Performance. Precision Control.

The VT3K ESCape32 M30 is an ultra-compact brushless ESC designed for tight micro RC builds where space, control, and reliability matter.

Powered by ESCape32 firmware, the M30 delivers smooth, precise low-speed throttle modulation while still providing strong power when you need it. Its tiny footprint makes installation easy in space-limited builds without giving up the performance expected from a full-featured ESC.

The M30 supports 2–4S LiPo, delivers 30A continuous current, and features a powerful 5A BEC adjustable through the WiFi module, giving you flexibility to dial in your electronics setup.

Whether you’re building a dedicated crawler or simply trying to clean up a tight electronics layout, the M30 was designed to give you more control in less space.

Specifications:
• ESCape32 firmware
• 30A continuous current
• 35A peak current
• 2–4S LiPo support
• 5V / 5A BEC — adjustable via WiFi module
• Approx. 28 × 14 × 4 mm
• Approx. 2.7g without wires
• Ultra-compact footprint for micro builds

VT3K ESCape32 M30
More control. Less space.

VT3K ESCape32 M30 Limited Warranty

The VT3K ESCape32 M30 is covered by a 60-day limited warranty from the original date of purchase against defects in materials and workmanship.

If you experience an issue during the warranty period, please contact VT3K Electronics before attempting any repair or modification. Proof of purchase may be required, and the ESC may need to be returned for inspection.

The warranty does not cover damage caused by incorrect installation or wiring, reverse polarity, short circuits, use outside the specified voltage or current limits, overheating caused by improper use, water or moisture damage, crash or physical damage, modified or cut components, or unauthorized repairs/modifications.

Products determined to have a manufacturing defect will be repaired or replaced at the discretion of VT3K Electronics.

Warranty applies to the original purchaser only and is non-transferable.
