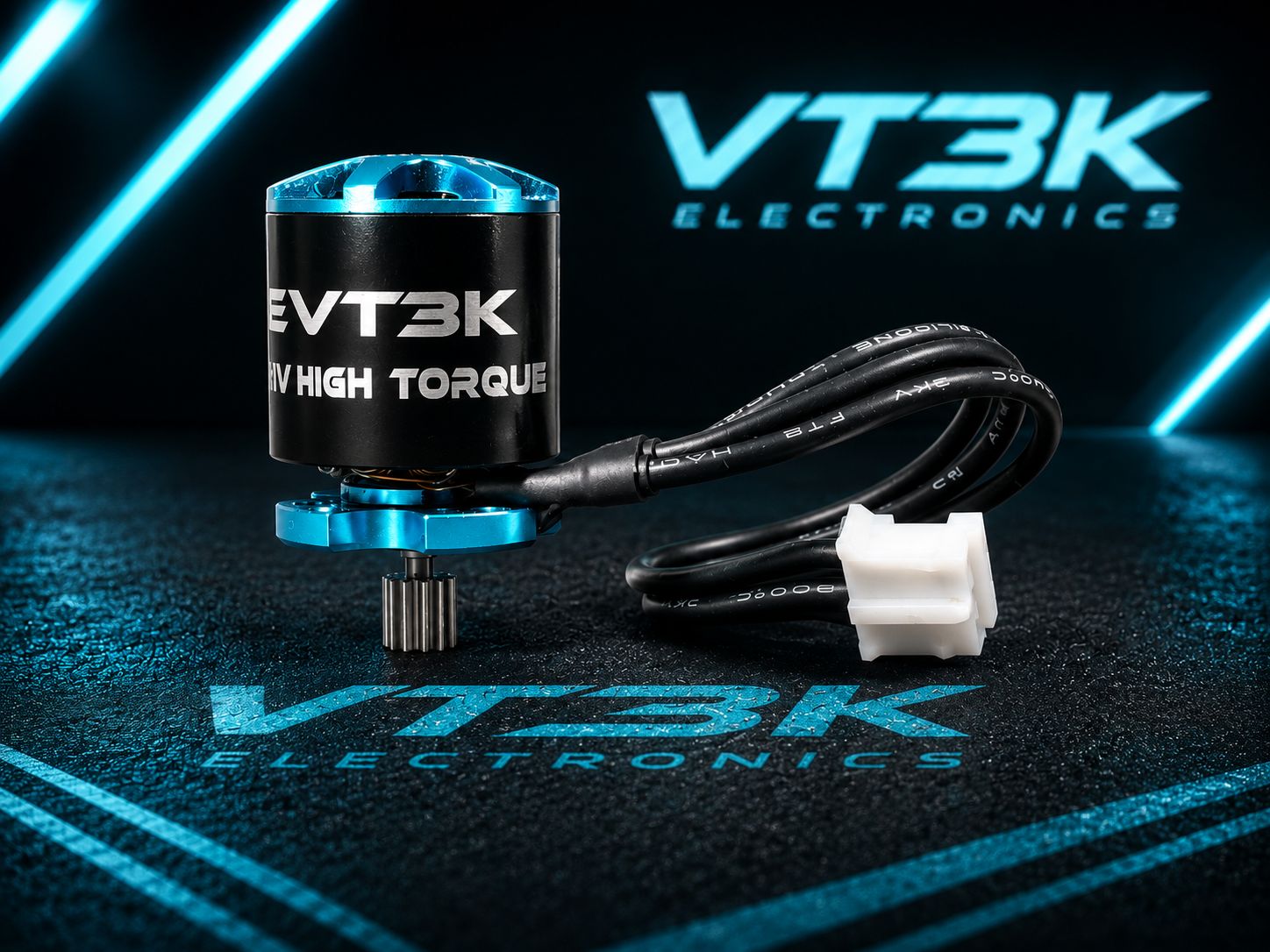

REVT3K Motor 3450KV

The REVT3K Just Got Even Better.

We’ve made several improvements to the REVT3K lineup based on customer feedback and real-world testing.

What’s New?

🔥 Improved Can Design

Our redesigned motor can improves heat dissipation to help keep temperatures lower during hot days.

✂️ Shorter Heat Shrink

We’ve shortened the heat shrink toward the motor for better wire flexibility and improved fitment in tight builds.

⚡ New 2000KV Option

The REVT3K lineup now includes a 2000KV option, giving drivers another choice for smooth, controlled power.

⚙️ Upgraded Steel Pinion Gear

We’ve replaced the brass pinion gear with a hardened steel pinion gear for increased durability, improved wear resistance, and longer service life.

🔩 9mm & 12mm Mounting Pattern

Dual mounting patterns provide greater compatibility across more applications.

✅ DLUX 1/24 Scale NOD Transmission Compatible

The REVT3K bolts directly to the DLUX 1/24 Scale NOD Transmission using the stock motor mount and stock spur gear—no modifications required.

⸻

Built from Real Feedback. Engineered for Better Performance.

✔ Improved Heat Dissipation

✔ Shorter Heat Shrink for Better Fitment

✔ Hardened Steel Pinion Gear

✔ New 2000KV Option

✔ 9mm & 12mm Mounting Pattern

✔ Direct Fit with the DLUX 1/24 Scale NOD Transmission

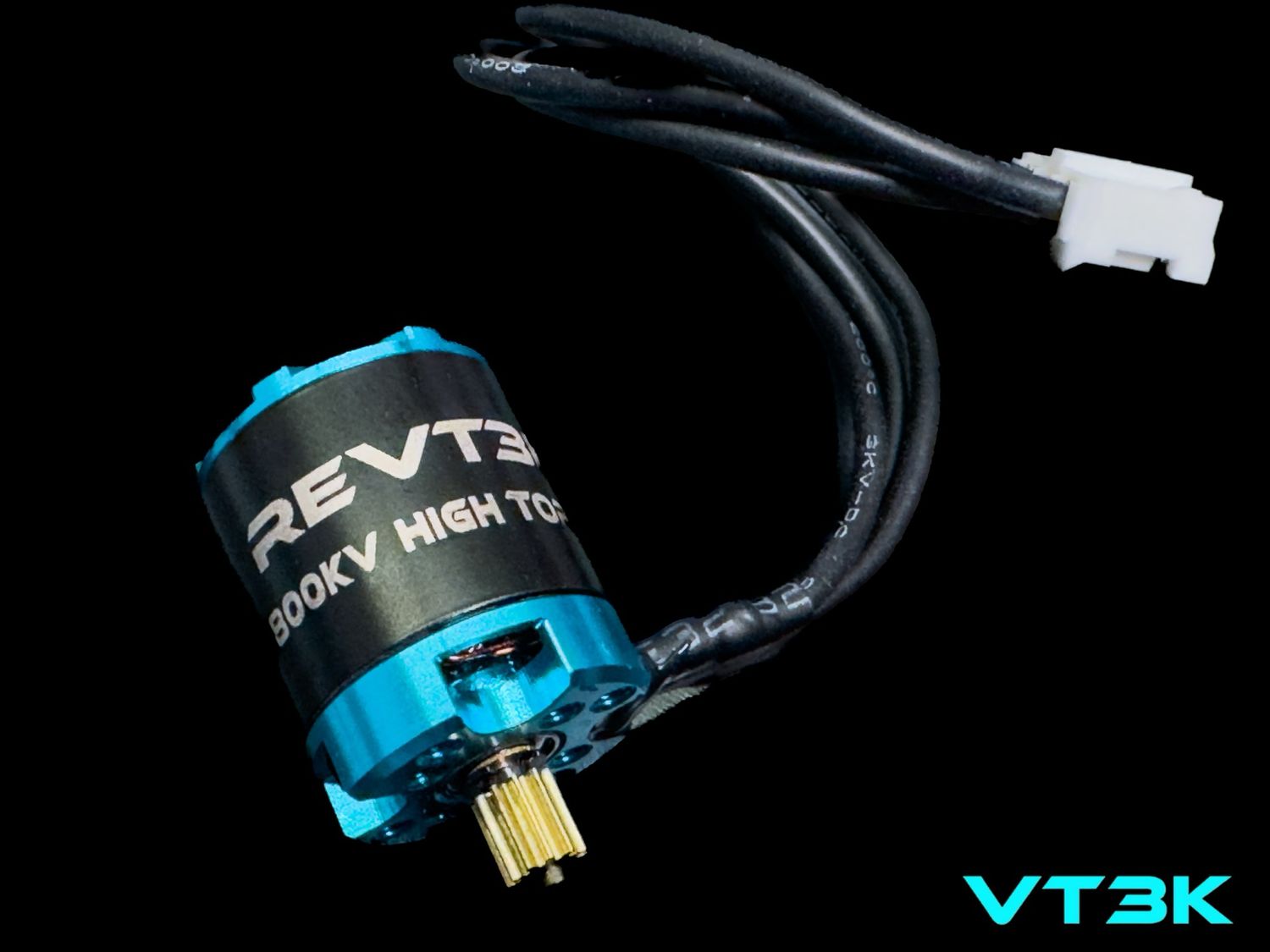

Revt3k 3450KV Brushless Motor

High Torque Performance for Demanding RC Crawling

The Revt3k 3450KV motor is built for unmatched power, torque, and precision. Designed for serious RC crawling enthusiasts, it combines a 12-pole high-torque design with advanced CNC-machined components to deliver smooth throttle response, excellent low-speed control, and reliable performance.

Key Features

• 12-Pole High-Torque Design → Delivers unmatched crawling power and superior performance.

• Ultra-Thin 0.2mm Stator Laminations → Improves efficiency and smoothness.

• Precision-Balanced Rotor → Ensures maximum reliability and stable high RPMs.

• CNC Machined 6061 T6 Billet Aluminum Heatsink Can → Provides superior heat dissipation and enhanced durability.

• Engineered for Maximum Energy Conversion → Optimized for RC crawling applications.

• High-Purity Copper Windings → Delivers excellent efficiency and reliability.

• Enhanced Heat Dissipation → Keeps temperatures low and prolongs motor life.

• Pre-installed 11T hardened steel Pinion Gear → Ready for quick installation and optimized performance.

Specifications

• KV (RPM/Motor): 3450

• No-Load Current @10V: 0.75A

• Power Output: 146W

• Battery Support: 2S–4S LiPo

• Resistance: 0.273Ω

• Max Current: 14.6A

• Slots / Poles: 12

• Motor Size: 15.5 × 20.6mm

• Shaft Diameter: 1.5mm

• Weight: 15.3g

• Bolt Pattern Spread: 9mm / 12mm

What’s Included

• (1) Revt3k 3450KV Brushless Motor

• (1) .3 Mod 11T hardened steel Pinion Gear (Pre-installed)

Installation & Care Note

For maximum longevity, ensure proper gear mesh upon installation. To protect your investment, always operate within recommended voltage limits and maintain your drivetrain to prevent premature motor fatigue.

VT3k Revt3k Motor Limited Warranty

2-Month Limited Warranty

VT3k Electronics warrants the Revt3k Motor to be free from defects in materials and workmanship for a period of 60 days (2 months) from the original date of purchase.

What Is Covered

During the warranty period, VT3k Electronics will, at its sole discretion, repair or replace any Revt3k Motor found to have a manufacturing defect under normal and intended use.

What Is Not Covered

This warranty does not cover damage or failure resulting from:

● Crash damage, impact, or abuse.

● Improper installation or incorrect wiring.

● Reverse polarity or incorrect battery voltage.

● Water, mud, corrosion, or other environmental damage.

● Overheating caused by improper gearing, excessive load, or inadequate cooling.

● Bearings, shafts, or other components subject to normal wear and tear.

● Modifications, disassembly, or repairs performed by anyone other than VT3k Electronics.

● Damage caused by incompatible electronics or improper tuning of the ESC.

● Cosmetic damage that does not affect product performance.

Warranty Requirements

To make a warranty claim, customers must provide:

● Proof of purchase from VT3k Electronics or an authorized dealer.

● A description of the issue.

● Photos or videos showing the problem, if requested.

VT3k Electronics may request that the motor be returned for inspection before approving a warranty claim.

Warranty Limitations

This warranty is limited to the repair or replacement of the product only. VT3k Electronics is not responsible for any indirect, incidental, or consequential damages, including damage to other equipment or loss of use.

This warranty applies only to the original purchaser and is non-transferable.

For warranty assistance, please contact VT3k Electronics with your order number and proof of purchase.
