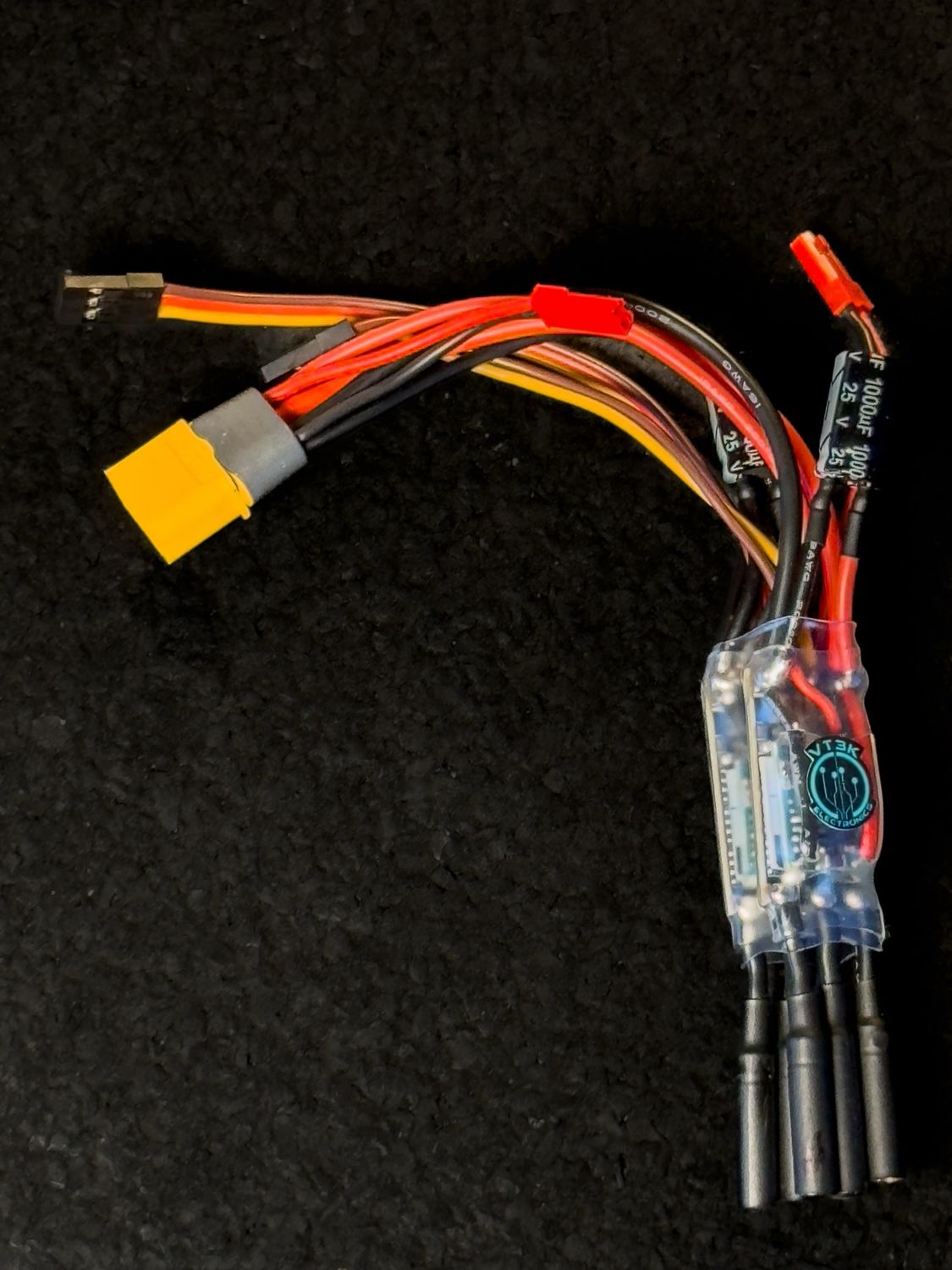

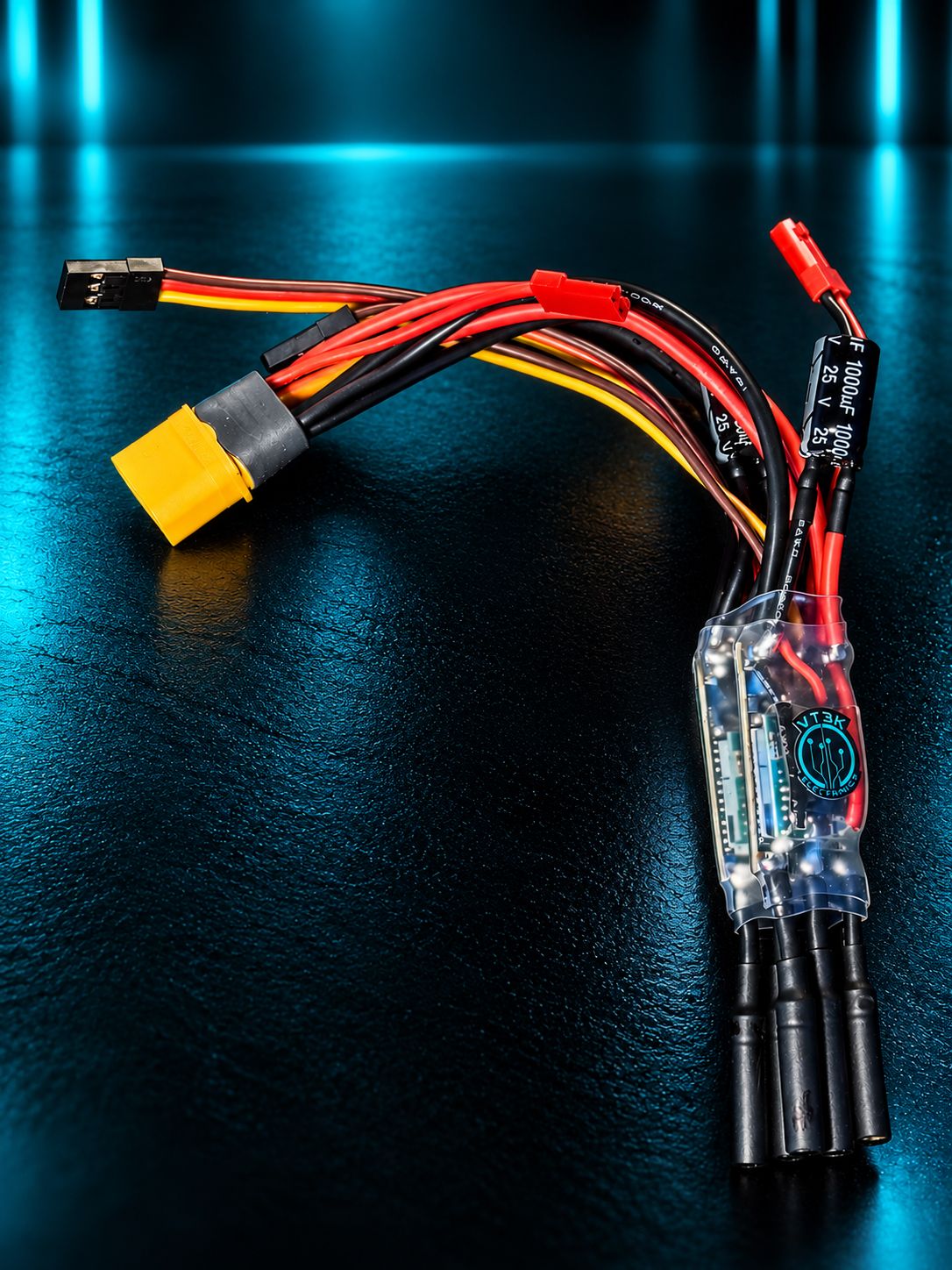

VT3k Dual Brushless ESC 1/10 Scale

Comes packed with Escape32 Firmware for the ultimate throttle modulation

2-3 amps bec is installed and can choose voltage from drop down menu (Don’t recommend powering a servo from the Bec) Direct power Servo recommended

Recommended motors

(1400kv &1800kv) Holmes hobby Snubnose V3)

Every ESC is built custom to order and tested on a truck after building before shipping

1. Connect your Front ESC signal wire to Channel 2 (CH2) on your receiver.
2. Connect your Rear ESC signal wire to Channel 3 (CH3) or any open auxiliary channel.
3. Power on your transmitter and vehicle.

1. Navigate to the Setting menu on your FlySky Noble NB4 touchscreen.
2. Scroll down and select Mixes (or Program Mixes depending on your firmware version).
3. Select an open mix slot (e.g., Mix 1) and turn the status to ON.

1. Set the Master Channel to CH2 (this links your main throttle trigger to both axles).
2. Set the Slave Channel to CH3 (or the aux channel where your rear ESC is plugged in).
3. Set both the Low Side Mix and High Side Mix rates to 100%. This ensures that pulling or pushing the throttle trigger sends an identical 1:1 signal to both your front and rear motors by default.

1. Go back to the main menu and select Assign -> Trims/Dials.
2. Select a preferred rotary knob or dial (such as TR1 or VR1).
3. Assign that dial to control the Mix 1 Offset or adjust the percentage of the Slave Channel (CH3).

• Result: Turning the dial forward will now increase front wheel speed relative to the rear, giving you instant, adjustable overdrive for sharp vertical breaks.

1. Select Assign -> Keys/Switches.
2. Choose a highly accessible button (such as the thumb switch SW1 or SW2).
3. Assign that key to Ch3 Override or Mix 1 Toggle, and set the target output value to a flat 0% (neutral) or brake position when pressed.

• Result: Pressing the switch instantly cuts power or locks the rear motor entirely, allowing your front axle to pull the rig around razor-sharp hook turns.

VT3k Escape32 ESC Limited Warranty

60-Day Limited Warranty

VT3k Electronics stands behind the quality of the VT3k Escape32 ESC. This product is backed by a 60-day (2-month) Limited Warranty from the date of the original purchase against defects in materials and workmanship.

If a manufacturing defect is confirmed during the warranty period, VT3k Electronics will, at its discretion, repair or replace the defective ESC with the same model or an equivalent replacement.

Warranty Exclusions

This warranty does not apply to products that have been damaged as a result of:

● Incorrect installation or wiring.

● Reverse battery polarity or operation outside the recommended voltage range.

● Water, moisture, corrosion, or other liquid-related damage.

● Physical abuse, crashes, drops, or impact damage.

● Excessive heat caused by improper gearing, overloading, or insufficient cooling.

● Improper programming or setup.

● Unauthorized modifications, disassembly, or repair attempts.

● Use with incompatible motors, batteries, or electronic components.

● Normal wear, cosmetic blemishes, or damage that does not affect the operation of the product.

Warranty Service

To request warranty service, please contact VT3k Electronics and provide:

● Proof of purchase.

● Order number.

● A description of the issue.

● Photos or video of the product and installation if requested.

VT3k Electronics may require the ESC to be returned for inspection before a warranty claim can be processed.

Warranty Terms

This Limited Warranty is valid only for the original purchaser and is non-transferable.

The warranty is limited exclusively to the repair or replacement of the ESC. VT3k Electronics shall not be liable for any indirect, incidental, or consequential damages, including damage to vehicles, motors, batteries, receivers, servos, or any other equipment resulting from the use or failure of the product.

Shipping costs associated with warranty service are the responsibility of the customer unless otherwise authorized by VT3k Electronics.

VT3k Electronics reserves the right to inspect all products submitted for warranty evaluation and to determine whether the failure is covered under the terms of this warranty.
